Filament PA6 Neat Spectrum 1.75mm Black 0.75kg
Spectrum PA6 Neat - high temperature poliamide
Filament Spectrum PA6 Neat is a new, high-temperature PA6-based construction material in black colour. A major feature of the PA6 Neat is its increased mechanical strength as compared to other plastics. The material also features exceptional thermal properties, chemical resistance to oils and lubricants, relatively high resistance to corrosion stimulators and good electrical insulation properties as compared to unmodified PA6 or PA66.
Parts made of Spectrum PA6 Neat allow for long-term operation at elevated temperatures up to 120°C (20.000h) and up to 160°C for a short-time operation (max. 200h), while maintaining sufficient mechanical properties. Filament PA6 Neat is characterized by a low linear processing shrinkage (0.3%) and a reduced water absorption (<0.3%, 23 ° C / 24h). The above features make it an excellent filament for a professional user to make solid prints.
- low linear processing shrinkage (0.3%)
- high temperature up to 160°C for short-time operation (max. 200h)
- high temperature up to 120°C for long-time operation (20.000h)
- heat distortion temperature – HDT A 90°C (ISO 75)
- water absorption below 0.3% (23°C / 24h)
- high creep resistance
- good tribological properties, including dry friction conditions such as in slide bearing
- chemical resistance to lubricants and oils

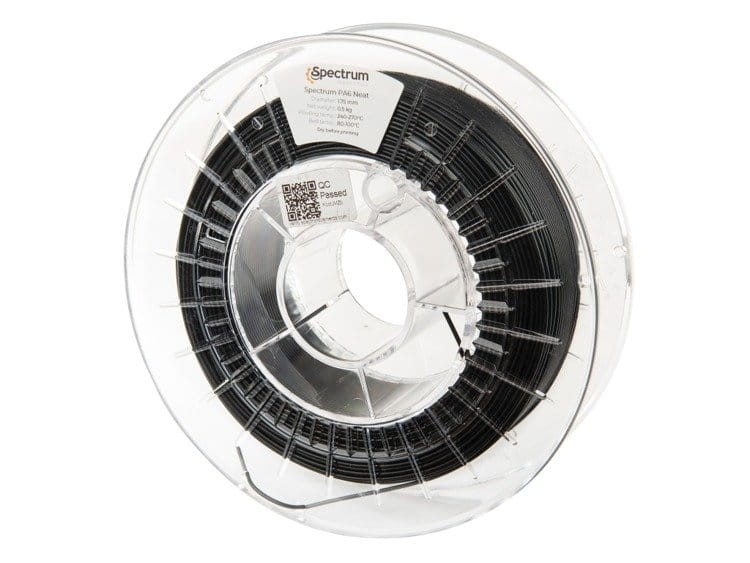

Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, folied Spectrum Filaments packaging.
Verify your spool
During the production each 1mm of filament is being continuously measured in 2 axis with ±0.8µm accuracy. To be sure that the measurement result is reliable we use certified laser meter devices. Each spool receives a sticker with an individual QR code and spool ID. In the final step collected data is transported to our database what enables end-user to check online the course of diameter, mean diameter, ovality, standard deviation and production date for each manufactured spool individually. Precise survey guarantees that our products meet rigorous market requirements.
Technical Data Sheet: TDS
Material Safety Data Sheet: MSDS
|Diameter tolerance||+/- 0.03mm|
|Continous service temp. (20.000h)||120°C|
|Service temp. (200h)||160°C|
|Verify your spool||YES (course of diameter online graph - on the entire length of the spool, mean diameter, ovality, standard deviation individually for each manufactured spool)|
|Nozzle temperature||from 250°C to 280°C|
|Bed temperature||between 60°C and 80°C|
|Recommended printing speed||from 30mm/s to 70mm/s|
|Recommended shell thickness||from 0.40mm to 2.70mm|
|Recommended layer height||higher or equal to 0.15mm|
|Cooling||between 0% and 10%|
|Closed chamber for printing||recommended for larger prints|
|Dry box recommended||yes|
|Ruby or hardened nozzle recommended||no|
|Adhesive||recommended (Magigoo PA)|
